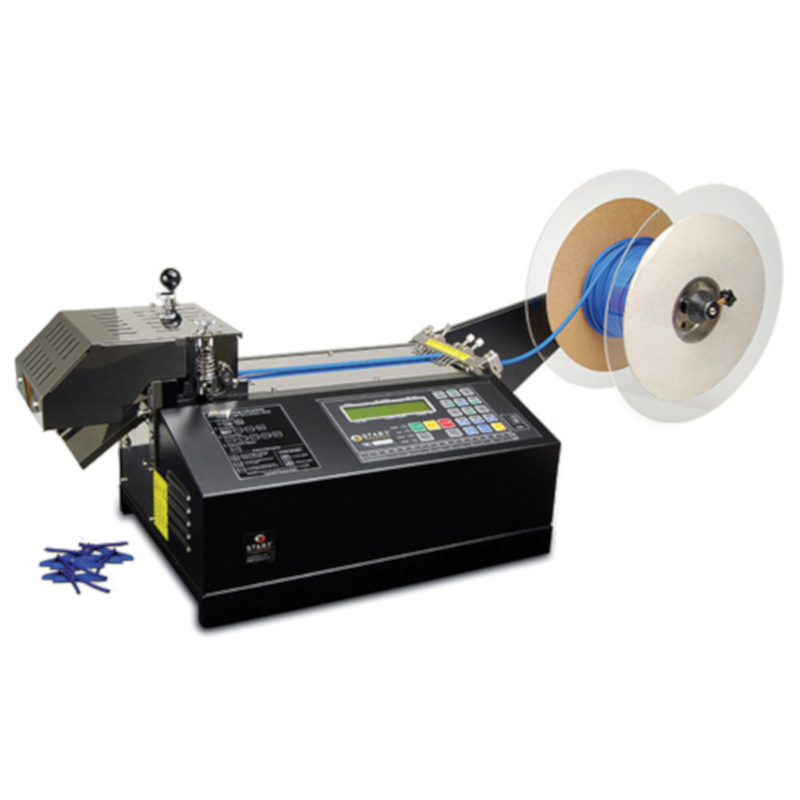

The START International TBC50 Heavy-Duty Non-Adhesive Material Cutter automatically dispenses, measures, and cuts non-adhesive materials. It’s ideal for heavy production to cut all kinds of tubing, sleeving, Nomex, Velcro, ribbon, etc. The TBC50 cuts up to 4.3″ (110mm) wide material or multiple rolls. The built-in high speed operation cuts up to 140 pieces per minute at 2″ (50mm) in length.
TBC50
Description
FEATURES
-Ideal for heavy production to cut tubing, sleeving, Nomex®, Velcro®, etc.
-Cut up to 4.33″ (110mm) wide material or multiple rolls
-High-speed – can cut up to 140 pieces per minute at 2″ (50mm) in length
-All electric microprocessor controlled
-Automatic shut-off – stops automatically if material runs out during operation
-Easy to use – set length, quantity and feed speed; then, press start
-Adjustable pressure on feed roller for thin or smooth materials
-Accuracy – by means of stepper motor
-Cutter safety guard included
-No tooling required to cut different materials
-Cutting blade is made of high-speed steel (HSS)
Technical Specifications
| Model # | TBC50 |
| Max. Width | 4.3 |
| Cut Length | .04 to 394 |
| Max. Material Thickness* | 0.25 |
| Feed Speed* | 105′ (32m)/min. 21 |
| Accuracy of Cut | +/-.04 |
| Max Outside Diam of Roll | 18 |
| Length and Count Settings | digital |
| Feed and Cut | automatic |
| Dimensions | 17″(L) x 13″(W) x 19″(H) • 42cm (L) x 32cm (W) x 48cm (H) |
| Weight | 39 lbs (17.5 kg) |
| Electrical Requirements | 100/120V 50/60Hz, <1 amp (230V 50/60Hz available) |
