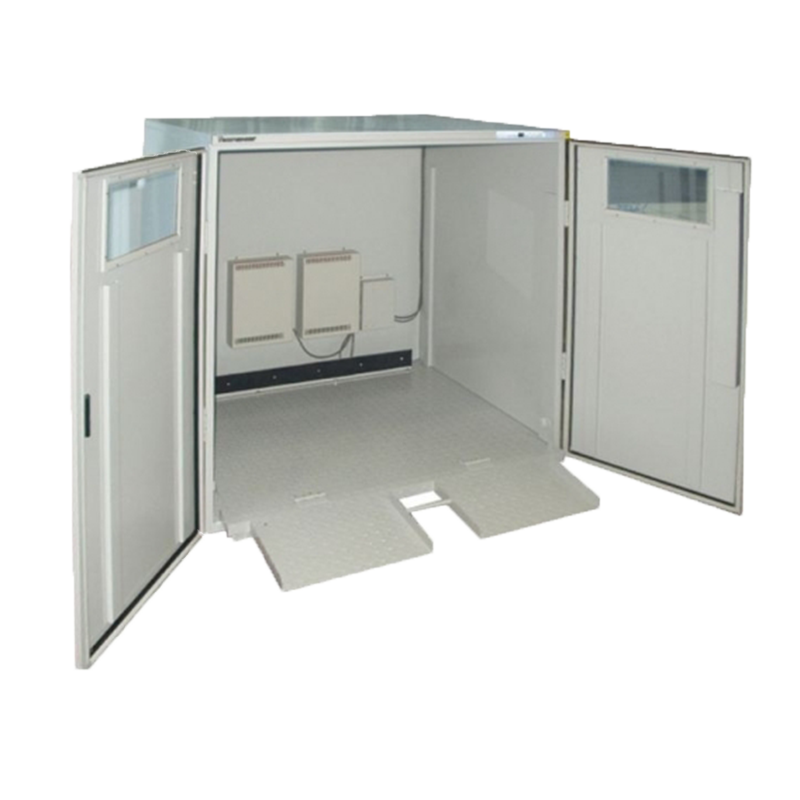

SDF-1402-01

Description

1.Features

1.1 Modular design: Totech Super Dry is modularly designed dry cabinet. The main modules include dry units, control box, sensor, shelves, castors, humidity&temperature monitoring module. All of the modules can be replaced easily. Totech dry cabinet can be used as long as the cabinet structure is in good condition. Most of our customers can use the Totech dry cabinets for more than 10 years without any problem.

1.2 Dry units: 1%RH

1.3 ESD safe design: Cabinet is with ESD metal painted steel body (106 Ohm/sq), Dissipative glass windows (in- and outside 108 Ohm/sq), stainless steel shelves and ground wire, well comply with IEC 61340-5-1.

1.4 Convenient Operation : Totech Super Dry cabinet is with digital control panel, can control the humidity precisely from 1% to 50%RH, by adjusting ±0.1%RH. Humidity, temperature and alarm functions are shown and can be adjusted by digital control panel. Key Lock function on the digital control panel prevents unintended changes of setting. Sensor calibration function is also available with digital panel.

1.5 Maintenance free design: Totech dry cabinet works by dry units. An interlocked fan causes the air to circulate through the dry unit, while passing through the dry unit moisture in the air is absorbed by the zeolite desiccant. During periodic regenerating of the zeolite desiccant by heating, the absorbed humidity is evaporated and exhausted through the external shutters of the dry unit. The process is physical, and no extra maintenance at all.

1.6 Data monitoring(Optional): Monitor and record data of humidity and temperature of dry cabinets in different sites of the factory in 24hrs, and data can be transferred to a PC by RJ45 connector for consulting and printing. Alarm will be sent automatically when the data exceeds the normal level.

1.7 Lockable doors：Door can be locked with a key

1.8 Alarm setting (Options): Humidity/door open alarm buzzer and humidity alarm light tower.

2.Applications

Super Dry Feeder series maintain preset internal humidity levels from 1~50% RH and is ideal for moisture proof and anti oxidation storage applications, offering protection from corrosion, mold and deterioration for such items as:

· Tape materials on feeders

· All kinds of Integrated Circuits (IC), like Monolithic, BGA, QFP; PLCC, Bipolar etc.

· Silicon Wafers.

· Aerospace related Instruments and Tools.

· Optical Equipment and Machine Tools.

· Watches.
