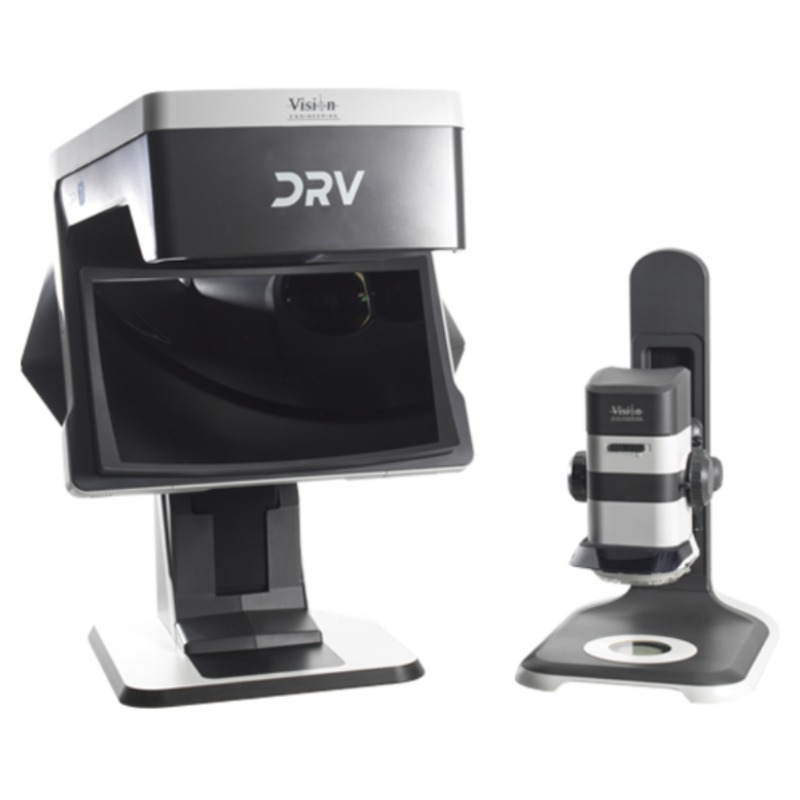

3D digital stereo microscope
DRV STEREO CAM
Description
The Power of 3D Digital Stereo
Get the viewing benefits of a 3D high resolution stereo zoom microscope and the convenience and speed of a digital microscope in one. Using the incredible DRV display technology, 3D stereo images can be viewed, captured and shared, using glasses-free technology. Magnification up to 700x makes DRV Stereo CAM as useful for capturing and sharing the smallest details efficiently and effectively.
Faster better decisions
DRV Stereo CAM is a market changing technology that improves the speed and quality of your decision making and product validation process by combining the benefits of magnified optical stereo binocular vision with digital technology to deliver an entirely new stereo microscopy capability.
See all the detail
Superb quality optics delivers high resolution, high contrast stereo images at the right magnification.
Whether looking at micro electronics, medical devices, precision components, scientific samples or any subject requiring magnification, viewing quality is enhanced, increasing work quality and thus reducing cost.
Technical Specifications
Optical
| Lenses | Field of view H (mm) | Field of view V (mm) | Magnification | Working Distance |
| 0.45x | 48 | 27 | 8.3 | 176 |
| 0.45x | 4.8 | 3 | 83 | 176 |
| 0.62x | 35 | 20 | 11.4 | 128 |
| 0.62x | 3.5 | 2 | 114 | 128 |
| 1x | 21.6 | 12 | 18.5 | 75 |
| 1x | 2.16 | 1.2 | 185 | 75 |
| 1.5x | 14.4 | 8.5 | 27.8 | 42 |
| 1.5x | 1.44 | 0.85 | 278 | 42 |
| 2x | 11.4 | 6 | 35.1 | 29 |
| 2x | 1.14 | 0.5 | 351 | 29 |
With 360° Optical Viewer
| Viewer Setting | Rotating View | Direct View |
| Magnification range | 13x – 130x | 21x – 210x |
| Working Distance | 35.5mm | 56.5mm |
| Viewing Angle | 34° | N/A |
Camera
| Camera | Magnification range |
| Resolution | 2x high resolution channels |
| Image Size on concave mirror | 15.75″ x8.86″ (400mm x225mm) in 16:9 aspect ratio |
Stand Options
| Ergo stand | Small footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted. |
| Multi-axis stand | Precise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). Small monitor mount can be fitted. |
| Double boom stand | For stability and extended reach. Available with direct mounting to work surface or platform base. |
| Single-arm boom stand | High stability, large working distance range, heavy duty platform base. |
| Articulated arm stand | Extended reach and ultimate flexibility to allow precise positioning. |
Software Options
| ViCapture | Image and video capture (supplied with camera). |
| DimensionOne | Image capture, annotation, on-screen measurement. |
| DimensionTwo | Image capture, annotation, on-screen measurement, camera control. |
| VifoxEVO | Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting. |
| ViPlus | Image capture, annotation, on-screen measurement, camera control, reporting. |
Other Accessories
- Contrast Enhancing Base: To optimise lighting for a variety of transparent and translucent samples, enhancing the observed contrast. (Brochure PDF)
- Floating stage: For smooth and precise control. For use with Ergo stand.
- Measuring scale.
