2 Tools DDE Precision Station
DDPE-2QB
Description
DDPE Precision Rework Station is a perfect solution for fast and precise SMD rework of chip components and small outline ICs using hand soldering tools.
The DDE Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the for complete list of compatible tools.
This rework station comes with the T210 Precision Purpose Handle and the AM120 Adjustable Micro Tweezers.
The short distance tip-to-grip of both tools provides the highest precision handling even under microscope.
The Precision Handle T210 work with C210 cartridges and the AM120 with C120 cartridges whose exceptional thinness allows reworking components on heavily populated PCBAs without disturbing nearby components.
With the practical Cartridge Holder SCH-A the different cartridges are always stored nearby.
PRODUCT COMPOSITION

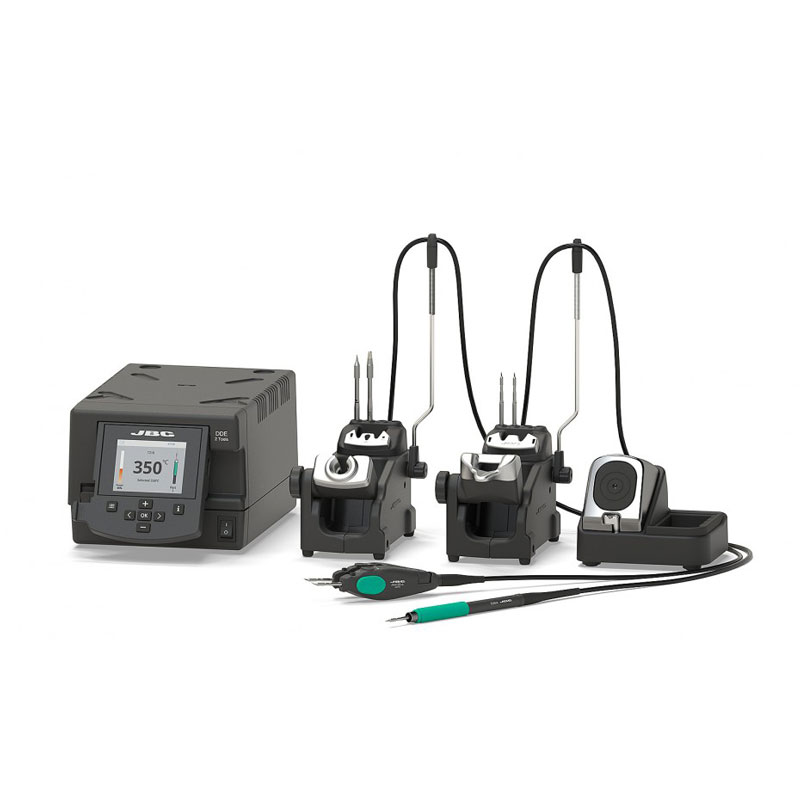

– 1 DDE 2 Tools Control Unit
– 1 AM120-A Adjustable Micro Tweezers
(cartridge not included)
– 1 T210-A Precision Purpose Handle
(cartridge not included)
– 1 AD-SE Stand for T210 & T245 Handles
– 1 AM-SA Stand for AM120 Micro Tweezers
– 1 SCH-A Cartridge Holder
– 1 CL8499 Manual Tip Cleaner
Technical Specifications
Voltage: 230V
| Selectable Temperature |
| 90 to 450 ºC / 190 to 840 ºF |
| CONNECTIVITY |
| USB-B (rear) |
| Software PC / Traceability |
| USB-A (front) |
| Firmware update Soldering Graphics management |
| Robot |
| RS-232 remote control or Smart Fume Extractor connection. |
| Equipotential bonding |
| Optional connection to EPA |
| ESD/EOS |
| ESD safe |
| Tip to ground resistance |
| <2 ohms |
| Tip to ground voltage |
| <2 mV RMS |
| POWER SUPPLY |
| Peak power |
| 150 W per tool – 23.5 V |
| Ambient operating temp. |
| 10 to 50 ºC / 50 to 120 ºF |
| DIMENSIONS AND WEIGHT |
| Control Unit |
| 148 x 120 x 232 mm / 3.82 kg |
| 5.8 x 4.7 x 9.1 in / 8.41 lb |
| Package |
| 474 x 368 x 195 mm / 8.79 kg |
| 18.7 x 14.5 x 7.7 in / 19.4 lb |
