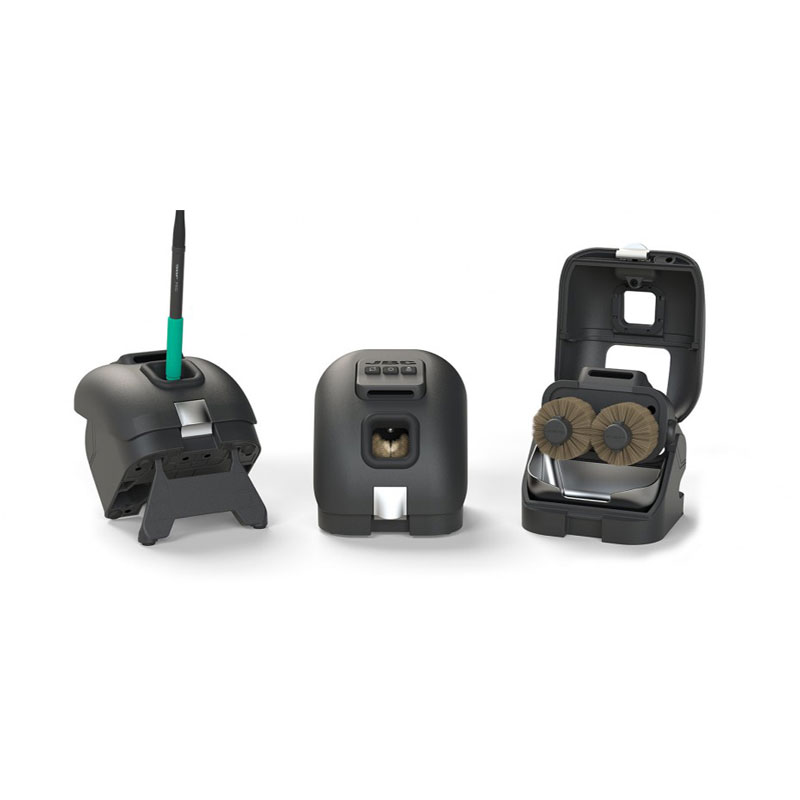

Universal Tip Cleaner, Metal Brushes
CLMU-A
Description
CLMU Universal tip Cleaner cleans the tip in only 1 second increasing its heat transfer capacity to maximize soldering quality.
Its fine bristle metal brushes of Ø50 mm provide a thorough and intensive tip cleaning.
It features two working modes: Sensor and Continuous.
Designed to keep the work area free of Foreign Object Debris (FOD).
PRODUCT COMPOSITION
– 1 CLMU-A8 Black Core Metal Brush
Technical Specifications
| SELECTABLE PARAMETERS |
| Operating modes |
| Proximity Sensor mode / |
| Continuous mode |
| SPECIAL FEATURES |
| Fast, thorough and gentle tip cleaning: |
| The 50 mm (1.97″) diameter brushes (available with metal or plastic bristles) thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity. |
| Silent operation: |
| Thanks to the brushless motors driving the cleaning brushes, the CLMU operation is extremely silent. |
| High capacity solder collector tray: |
| The high solder residue capacity tray allows extending maintenance intervals increasing the productivity. |
| Vertical position |
| The cleaning unit allows vertical position for ergonomic use of the cleaner when working in a standing position. |
| CONNECTIVITY |
| USB-B |
| PC connectivity for traceability purposes / Firmware update |
| Equipotential bonding |
| ESD/EOS |
| ESD safe |
| POWER SUPPLY |
| Ambient operating temp. |
| 10 to 40 ºC / 50 to 104 ºF |
| DIMENSIONS AND WEIGHT |
| Cleaning unit with brushes |
| 128 x 131 x 137 mm / 2.1 kg |
| 5.0 x 5.2 x 5.4 in / 4.63 lb |
| Package |
| 213 x 220 x 160 mm / 2.6 kg |
| 8.4 x 8.7 x 6.3 in / 5.73 lb |
| 2.100 kg (4.63 lb) |
| 2.320 kg (5.11 lb) |
| 220 x 213 x 160 mm |
