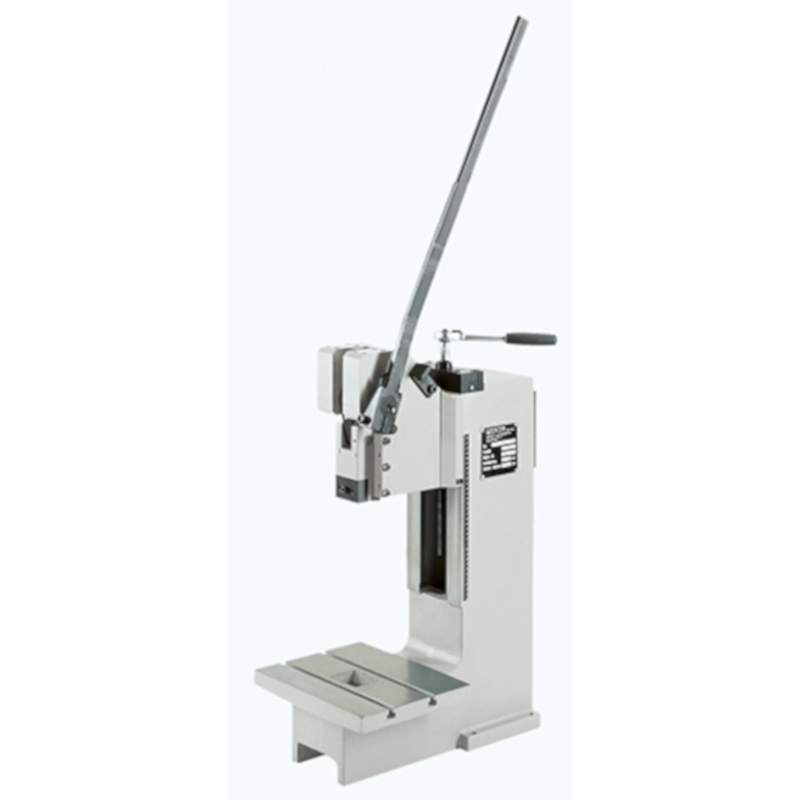

No-play Adjustable Inverted V Guide
50 HKP
Description
A2 = 565
B = 220
C = 715
D = 340
E = 200
F = 150
G = 120
U = 44
V = Ø 25 H7
X = 110-370
X1 = 0-15
Y = 1250-1510
Technical Specification
| Press type | Manual toggle press |
| Operation | Manually |
| Overhang | 200mm |
| Installation height adjustable | 110 mm – 370 mm |
| Stroke | 15 mm |
| Max. pressforce at lower dead center | 55 kN |
| Lever operating force, allowed maximum | 330 N |
| Location bore | Ø25 H7 |
| Clamped piece | Removable clamped piece |
| Twist-free guide | Prism guide |
| Guide play-free adjustable | By adjustment gib |
| Hand lever position | Right 360° adjustable |
| Height adjustment guide unit | Ratchet |
| Fastening guide unit per screw | 170 NM |
| Standard color | RAL 7035 |
| Weight | 242 kg |
