Peel off the back paper of tape as it cuts.

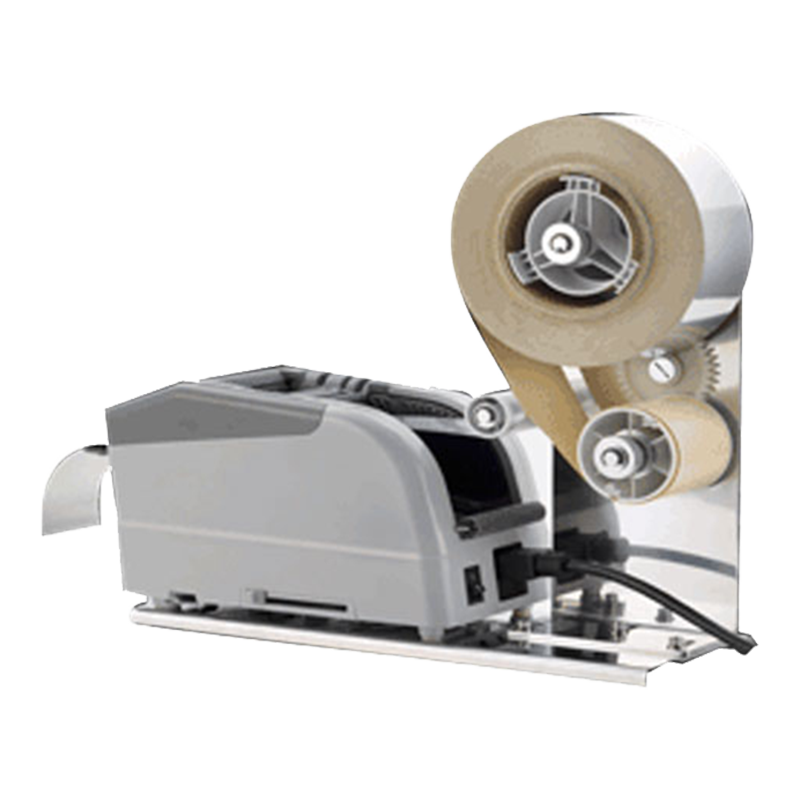

Z-CUT-9GRRP
Description
Features
-ZCUT-9GRRP has a special function to peel off the back paper of tape.
-The maximum outside diameter of roll is 150mm. we can only supply in set unit.
-Aluminum Foil Copper Foil tape are usable.
-Please send a whole tape sample to us before using this model.
Technical Specification
| Cut Length | 5 – 999 mm |
| Tape Width | 6 – 60 mm |
| Usable Tape | Back Papered,Double-Sided, Aluminum Foil, Copper Foil. |
| Usable Non Adhesive Material | Protection Film, Paper Tape, Insulation Film, Aluminum Foil, Copper Foil etc. |
| Feeding Speed | 220 mm sec (when cut Craft Tape) |
| Max Outside Diameter | 150 mm (inside diameter of 75mm) |
| Accessories | Power Cord, 2A Fuse (Built-In Inlet), Separator, Guide Plate, Blade Oil. |
| Body Material | ABS |
| Power Requirements | AC100V 50/60Hz 25W |
| Dimensions | 116 mm(W)x140 mm(H)x213 mm(D) |
| Weight | 2.5kg |
*Some of usable tapes may not cut depends on material/tape manufacturer.
*The length of tape might be have an error depends on types of tape.
*Specification are subject to change without prior notice.
