Description
■Rework in PB free solder. (For dipped parts)
■CPU digital circuit for temperature control・switching power supply.
■Safe and easy nozzle replacement (old nozzle also can be used)
■Solder-flow stand-by mode substantially reduces soldering tact time. (TOP-375・375SP)
■Free power supply (AC100, 115&230V) [easy voltage change on terminal board]
■Solder bath and heater are made from sus316. (corrode-resist)
■Original N2 SPRAY NOZZLE. (option)
■The large fender allows used of big nozzle. Simple and easy maintenance and cleaning.

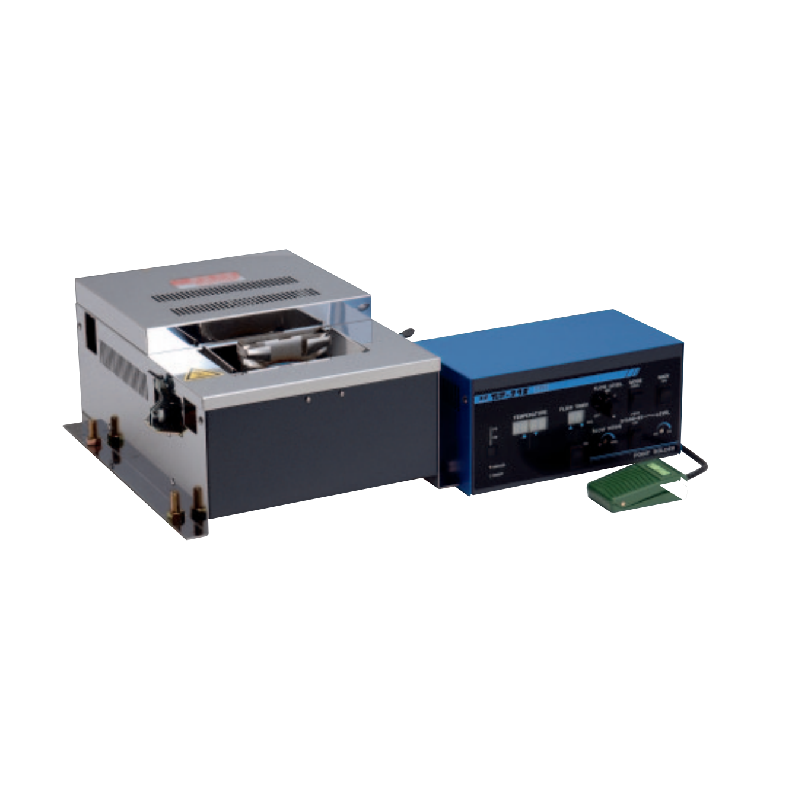

■Separate type which resist high temperature. (TOP-375SPH)
■Possible to use for Pb-free and Pb solder in the same machine by exchanging solder bath unit.(Unit exchange time: approx. 15 minutes)
-Accurate temperature controlled by CPU digital circuit. (±１C°)
-Flow time equipped TOP-375 become even safer when soldering.
-Solder flow stand-by function shorten the tact time for higher efficiency. (TOP-375・375SP)
-One-Touch nozzle lock lever assures safe and easy nozzle change.
-Full area fender is equipped to reduce solder dispention.
-DC brushles motor to control flow level. Switching power supply.
-Original N2 spray nozzle and N2 supply unit reduce oxide to 1/10. (OPTION)
-Solder bath unit style is designed for easy replacement and maintenance.
-Easy targeting with new laser pointing marker. (TOP-375/SP)
-Power supply: AC100~230V 50/60 Hz (exchange voltages on terminal board.)
-Rating: 970W
-Temperature setting: 200~420℃
-Thermo control type: CPU digital (℃/°F exchangeable)
-Heater capacity: SUS316 + nitride coating + 1200 W sheaths heater
-Material of solder bath: titanium
-Stand-by: flow up time, stand-by switch
-Monitor indicator: heater ON, READY (motor interlock), flow display
-Maximum P.C.B. dimension m/m: 200×400
-Dimensions m/m: 280W×400D×210H
-Solder bath dimension m/m: 140W×215D×80H
-Controller dimension m/m: 280W×150D×150H
-Weight: approx. 15kg (except solder) / controller approx. 5kg
-Solder capacity: approx. 15kg
-Option: cooling fan, N2 NOZZLE, N2 supply unit, N2 generator
-Accessories: foot switch, spoon,belt, manual, grease
